9DBL0853, 9DBL0843 - LP-HCSL Zero-Delay Buffer

Renesas

📥 Download Datasheet

9DBL0853 Datasheet Preview — This datasheet PDF includes multiple part numbers: 9DBL0853, 9DBL0843. Please refer to the document for exact specifications by model.

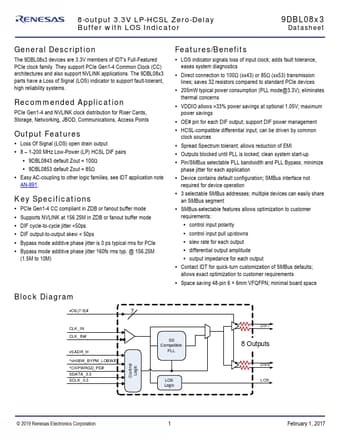

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 9DBL0853, 9DBL0843
Manufacturer: Renesas ↗
File Size: 495.28 KB
Datasheet: 9DBL0843-Renesas.pdf
Description: LP-HCSL Zero-Delay Buffer
Note: This datasheet PDF includes multiple part numbers: 9DBL0853, 9DBL0843.
Please refer to the document for exact specifications by model.

9DBL0853 Product details

Description

The 9DBL08x3 devices are 3.3V members of IDT's Full-Featured PCIe clock family.

Features

▪ Loss Of Signal (LOS) open drain output ▪ 8.
1-200 MHz Low-Power (LP) HCSL DIF pairs ▪ 9DBL0843 default Zout = 100Ω ▪ 9DBL0853 default Zout = 85Ω ▪ Easy AC-coupling to other logic families, see IDT application note AN-891. Key Specifications ▪ PCIe Gen1-4 CC compliant in ZDB or fanout buffer mode ▪ Supports NVLINK at 156.25M in ZDB or fanout buffer mode ▪ DIF cycle-to-cycle jitter.
