9DML0441 - 2:4 3.3V PCIe Gen1-5 Clock Mux

Renesas

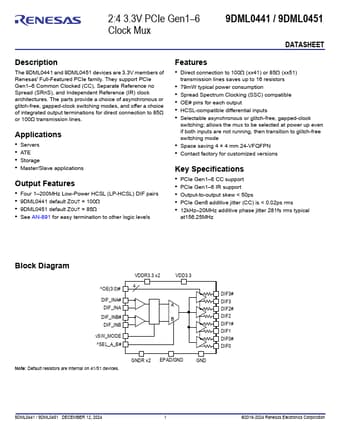

9DML0441 Datasheet Preview — Preview of 9DML0441 PDF

Datasheet Details

Part number	9DML0441
Manufacturer	Renesas ↗
File Size	628.57 KB
Description	2:4 3.3V PCIe Gen1-5 Clock Mux
Datasheet	9DML0441-Renesas.pdf

9DML0441 Product details

Description

The 9DML0441 and 9DML0451 devices are 3.3V members of Renesas' Full-Featured PCIe family. 6 Common Clocked (CC), Separate Reference no Spread (SRnS), and Independent Reference (IR) clock architectures. Servers ATE Storage

Features

Four 1.
200MHz Low-Power HCSL (LP-HCSL) DIF pairs.
9DML0441 default ZOUT = 100.
9DML0451 default ZOUT = 85.
See AN-891 for easy termination to other logic levels Features.
Direct connection to 100 (xx41) or 85 (xx51) transmission lines saves up to 16 resistors.
79mW typical power consumption.
Spread Spectrum Clocking (SSC) compatible.
OE# pins for each output.
HCSL-compatible differential inputs.
