CA3130 BiMOS Operational Amplifier

CA3130 Description

DATASHEET CA3130, CA3130A 15MHz, BiMOS Operational Amplifier with MOSFET Input/CMOS Output FN817 Rev.6.00 Aug 1, 2005 CA3130A and CA3130 are op amp.

CA3130 Features

* MOSFET Input Stage Provides: - Very High ZI = 1.5 T (1.5 x 1012) (Typ) - Very Low II
* . . . 5pA (Typ) at 15V Operation
* . = 2pA (Typ) at 5V Operation

CA3130 Applications

* A CMOS transistor-pair, capable of swinging the output voltage to within 10mV of either supply-voltage terminal (at very high values of load impedance), is employed as the output circuit. The CA3130 Series circuits operate at supply voltages ranging from 5V to 16V, (2.5V to 8V). They can be phase

📥 Download Datasheet

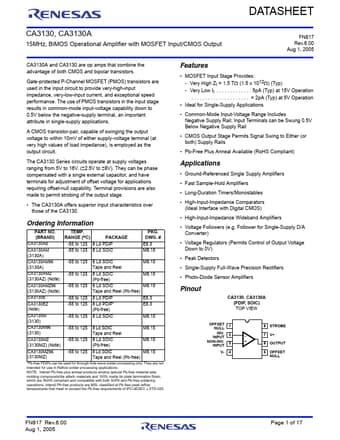

Preview of CA3130 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CA3130
Manufacturer
Renesas ↗
File Size
1.22 MB
Datasheet
CA3130-Renesas.pdf
Description
BiMOS Operational Amplifier
