Datasheet Details

Part number:

CCG9020

Manufacturer:

Renesas ↗

File Size:

924.46 KB

Description:

Power control ic.

CCG9020, Power Control IC

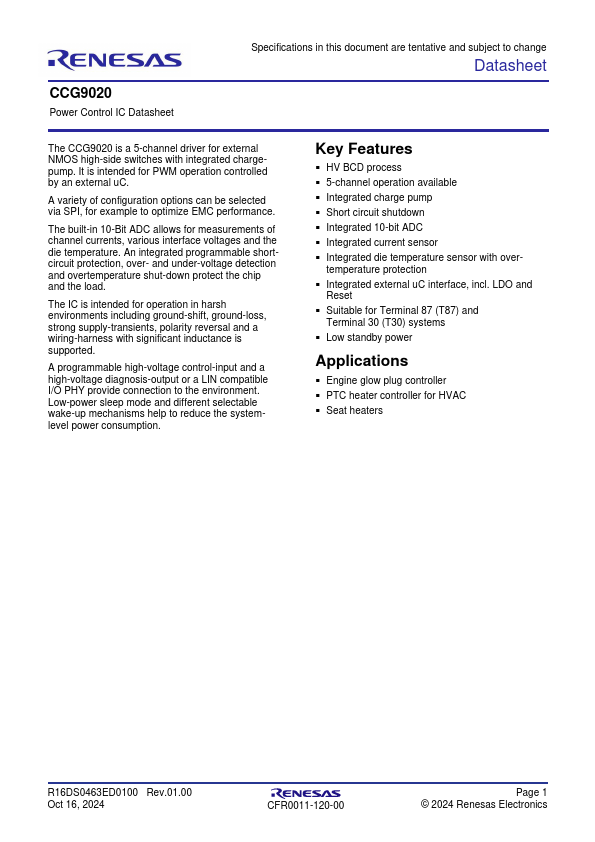

CCG9020 Power Control IC Datasheet Specifications in this document are tentative and subject to change Datasheet The CCG9020 is a 5-channel driver for external NMOS high-side switches with integrated chargepump.

It is intended for PWM operation controlled by an external uC.

A variety of configuration options can be selected via SPI, for example to optimize EMC performance.

The built-in 10-Bit ADC allows for measurements of channel currents, various interface voltages and the die temperature.

A

CCG9020 Features

* ▪ HV BCD process ▪ 5-channel operation available ▪ Integrated charge pump ▪ Short circuit shutdown ▪ Integrated 10-bit ADC ▪ Integrated current sensor ▪ Integrated die temperature sensor with over- temperature protection ▪ Integrated external uC interface, incl. LDO and Reset ▪ Suitable for Terminal
