DA16600, DA16600MOD - Ultra-Low Power Wi-Fi + Bluetooth LE Combo Module

Renesas

📥 Download Datasheet

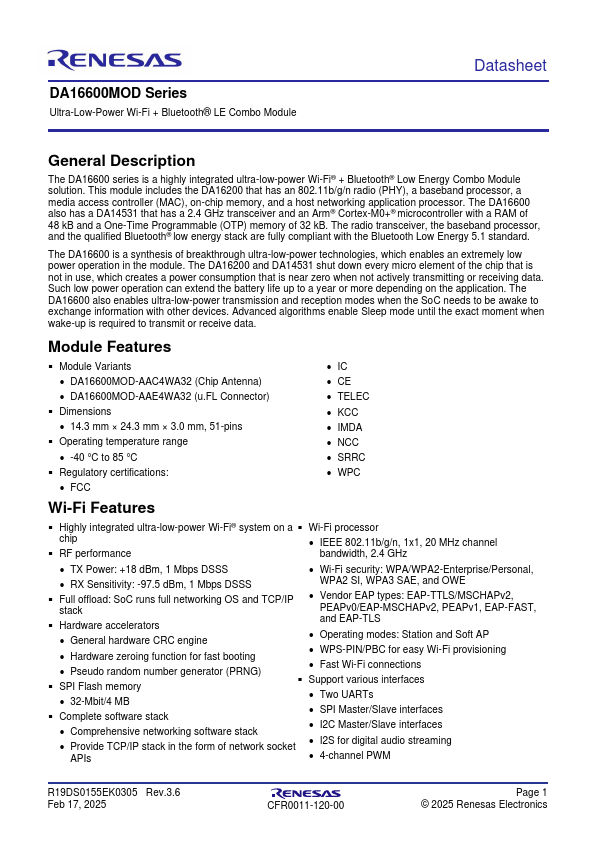

DA16600 Datasheet Preview — This datasheet PDF includes multiple part numbers: DA16600, DA16600MOD. Please refer to the document for exact specifications by model.

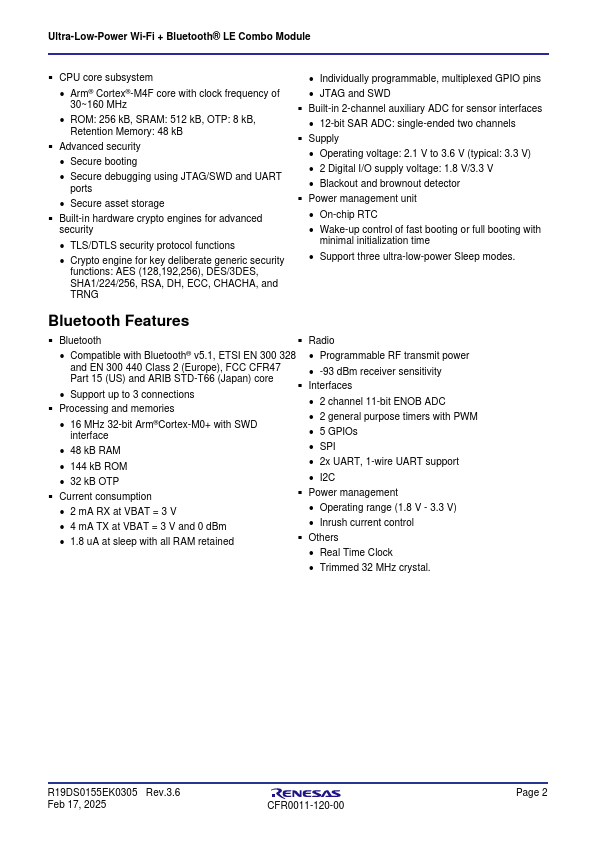

datasheet Preview Page 2

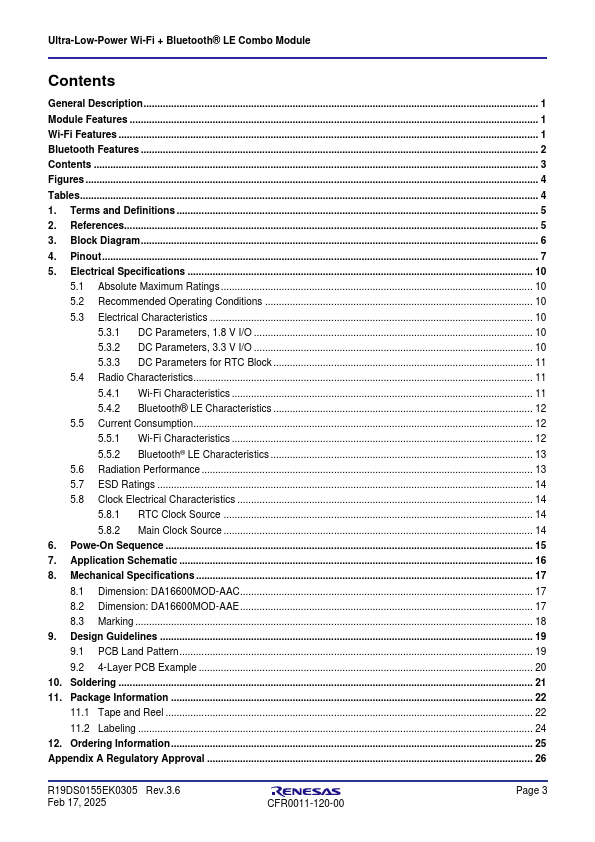

datasheet Preview Page 3

Datasheet Details

Part number	DA16600, DA16600MOD
Manufacturer	Renesas
File Size	1.25 MB
Description	Ultra-Low Power Wi-Fi + Bluetooth LE Combo Module
Datasheet	DA16600MOD-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: DA16600, DA16600MOD. Please refer to the document for exact specifications by model.

DA16600 Product details

Description

The DA16600 series is a highly integrated ultra-low-power Wi-Fi® + Bluetooth® Low Energy Combo Module solution.

Features

Module Variants.
DA16600MOD-AAC4WA32 (Chip Antenna).
DA16600MOD-AAE4WA32 (u. FL Connector).
Dimensions.
14.3 mm × 24.3 mm × 3.0 mm, 51-pins.
Operating temperature range.
-40 °C to 85 °C.
Regulatory certifications:.
FCC.
IC.
CE.
TELEC.
KCC.
IMDA.
NCC.
SRRC.
WPC Wi-Fi Features.
Highly integrated ultra-low-power Wi-Fi® system on a.
Wi-Fi processor c.
