DA9141

DC-DC Converter

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Renesas Electronics Corporation DA9141-XXF71 IC REG BUCK ADJ 25A 60FCBGA DigiKey 0 5096 units
$3.52

DA9141 Datasheet (1.19 MB)

Preview of DA9141 PDF Datasheet

Datasheet Details

Part number:

DA9141

Manufacturer:

Renesas ↗

File Size:

1.19 MB

Description:

Dc-dc converter

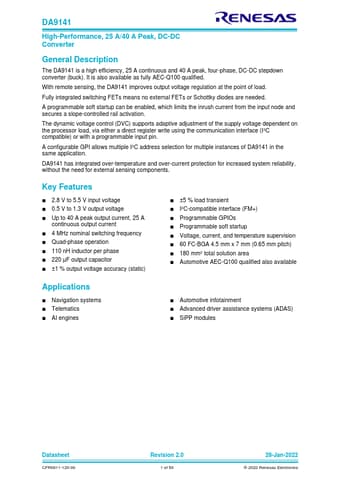

DA9141 Features

* 2.8 V to 5.5 V input voltage

* 0.5 V to 1.3 V output voltage

* Up to 40 A peak output current, 25 A continuous output current

* 4 MHz nominal switching frequency

* Quad-phase operation

* 110 nH inductor per phase

* 220 µF output capacitor

* ±1 % output voltage accur

DA9141 General Description

The DA9141 is a high efficiency, 25 A continuous and 40 A peak, four-phase, DC-DC stepdown converter (buck). It is also available as fully AEC-Q100 qualified. With remote sensing, the DA9141 improves output voltage regulation at the point of load. Fully integrated switching FETs means no external FE.
