EL5111T - Operational Amplifier

Product Overview

Renesas

Datasheet Details

Part number	EL5111T
Manufacturer	Renesas
File Size	767.92 KB
Description	Operational Amplifier
Datasheet	EL5111T Datasheet

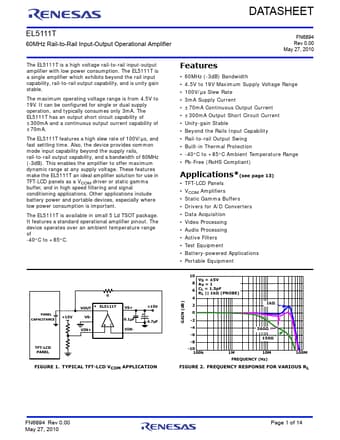

Additional preview pages of the EL5111T datasheet.

Product details

Description

PIN NUMBER 1 2 3 4 5 PIN NAME VOUT VSVIN+ VINVS+ EL5111T (5 LD TSOT) TOP VIEW VOUT 1 5 VS+ VS- 2 VIN+ 3 +- 4 VIN- FUNCTION Amplifier output Negative power supply Amplifier non-inverting input Amplifier inverting input Positive power supply EQUIVALENT CIRCUIT (Reference “CIRCUIT 1”) (Reference “CIRCUIT 2”) (Reference “CIRCUIT 2”) VS+ VOUT GND VS- CIRCUIT 1 VIN VS+ CIRCUIT 2 VS- Ordering Information PART NUMBER (Notes 1, 2, 3) PART MARKING PACKAGE (Pb-Free) PKG.DWG.# EL5

Features

a high slew rate of 100V/µs, and fast settling time. Also, the device provides common mode input capability beyond the supply rails, rail-to-rail output capability, and a bandwidth of 60MHz (-3dB). This enables the amplifier to offer maximum dynamic range at any supply voltage. These features make the EL5111T an ideal amplifier solution for use in TFT-LCD panels as a VCOM driver or static gamma buffer, and in high speed filtering and signal conditioning.
