EL5126 - 8-Channel TFT-LCD Reference Voltage Generator

EL5126 Description

EL5126 8-Channel TFT-LCD Reference Voltage Generator The EL5126 is designed to produce the reference voltages required in TFT-LCD applications.Each .
CONDITION MIN TYP MAX UNIT SUPPLY IS ISD ANALOG Supply Current Digital Supply Current No load 7.

EL5126 Features

* 8-channel reference outputs
* Accuracy of ±0.1%
* Supply voltage of 4.5V to 16.5V
* Digital supply 3.3V to 5V
* Low supply current of 10mA
* Rail-to-rail capability

EL5126 Applications

* Each output is programmed to the required voltage with 10 bits of resolution. Reference pins determine the high and low voltages of the output range, which are capable of swinging to either supply rail. Programming of each output is performed using the serial interface. A number of the EL5126 can b

📥 Download Datasheet

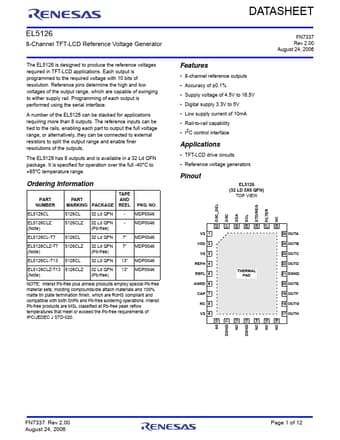

Preview of EL5126 PDF
