EL8176 - Precision Op Amp

Description

SO PIN NUMBER 1, 5 2 3 4 6 7 8 SOT-23 PIN NUMBER 4 3 2 1 6 5 PIN NAME NC ININ+ VOUT V+ EN Equivalent Circuit Circuit 1 Circuit 1 Circuit 4 Circuit 3 Circuit 4 Circuit 2 DESCRIPTION No internal connection Amplifier’s inverting input Amplifier’s non-inverting input Negative power supply Amplifie

Features

  • 55µA supply current.
  • 100µV max offset voltage (8 Ld SO).
  • 2nA input bias current.
  • 400kHz gain-bandwidth product.
  • Single supply operation down to 2.4V.
  • Rail-to-rail input and output.
  • Output sources 31mA and sinks 26mA load current.
  • Pb-free (RoHS compliant).

📥 Download Datasheet

Datasheet Details

Part number EL8176
Manufacturer Renesas
File Size 1.49 MB
Description Precision Op Amp
Datasheet download datasheet EL8176 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EL817 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Everlight Electronics
EL817 Photocoupler ARTS CHIP
EL817-G 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Everlight
EL817A 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Everlight
EL817A-FV 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER Everlight

Other Datasheets by Renesas

Part Number Description
EL8170 Rail-to-Rail Input-Output Instrumentation Amplifier
EL8171 Rail-to-Rail Input-Output Instrumentation Amplifier
EL8172 Rail-to-Rail Input-Output Instrumentation Amplifier
EL8173 Rail-to-Rail Input-Output Instrumentation Amplifier
EL8178 Precision Op Amp

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

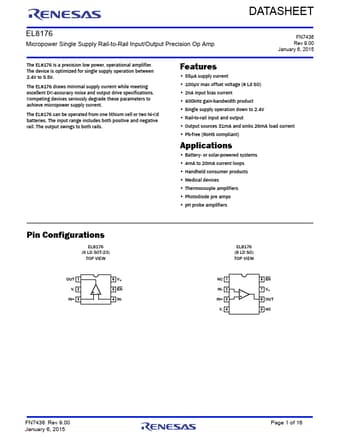

DATASHEET EL8176 Micropower Single Supply Rail-to-Rail Input/Output Precision Op Amp FN7436 Rev 9.00 January 6, 2015 The EL8176 is a precision low power, operational amplifier. The device is optimized for single supply operation between 2.4V to 5.5V. The EL8176 draws minimal supply current while meeting excellent DC-accuracy noise and output drive specifications. Competing devices seriously degrade these parameters to achieve micropower supply current. The EL8176 can be operated from one lithium cell or two Ni-Cd batteries. The input range includes both positive and negative rail. The output swings to both rails. Features • 55µA supply current • 100µV max offset voltage (8 Ld SO) • 2nA input bias current • 400kHz gain-bandwidth product • Single supply operation down to 2.
