F1953 Datasheet - Renesas

F1953, 6-bit Digital Step Attenuator

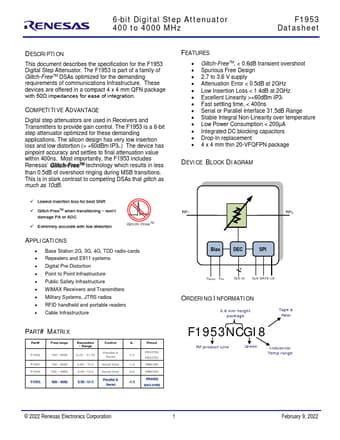

6-bit Digital Step Attenuator 400 to 4000 MHz F1953 Datasheet .
This document describes the specification for the F1953 Digital Step Attenuator.

datasheet Preview Page 1 from Datasheet4u.com

F1953-Renesas.pdf

F1953 Datasheet Preview — Preview of F1953 PDF

Datasheet Details

Part number:

F1953

Manufacturer:

Renesas ↗

File Size:

1.78 MB

Description:

6-bit Digital Step Attenuator

Features

* Glitch-FreeTM, < 0.6dB transient overshoot
* Spurious Free Design
* 2.7 to 3.6 V supply
* Attenuation Error < 0.5dB at 2GHz
* Low Insertion Loss < 1.4dB at 2GHz
* Excellent Linearity >+60dBm IP3I
* Fast settling time, < 400ns
* Serial

Applications

* The silicon design has very low insertion loss and low distortion (> +60dBm IP3I. ) The device has pinpoint accuracy and settles to final attenuation value within 400ns. Most importantly, the F1953 includes Renesas’ Glitch-FreeTM technology which results in less than 0.5dB of overshoot ringing durin
