FS70UMJ-06F - Nch Power MOS FET

Datasheet Summary

Features

  • Drive voltage : 4 V.
  • VDSS : 60 V.
  • rDS(ON) (max) : 7.0 mΩ.
  • ID : 70 A.
  • Recovery Time of the Integrated Fast Recovery Diode (TYP. ) : 70 ns Outline TO-220 4 2, 4 1 REJ03G0250-0100 Rev.1.00 Aug.20.2004 1. Gate 2. Drain 3. Source 4. Drain 12 3 3.

📥 Download Datasheet

Datasheet preview – FS70UMJ-06F

Datasheet Details

Part number FS70UMJ-06F
Manufacturer Renesas
File Size 92.57 KB
Description Nch Power MOS FET
Datasheet download datasheet FS70UMJ-06F Datasheet
Additional preview pages of the FS70UMJ-06F datasheet.

📁 Similar Datasheet

  • FS70UMJ-06 - Nch POWER MOSFET (Mitsubishi)
  • FS70UMJ-03 - N-Channel Power MOSFET (Mitsubishi Electric Semiconductor)
  • FS70UMJ-2 - N-Channel Power MOSFET (Mitsubishi Electric Semiconductor)
  • FS70UM-06 - N-Channel Power MOSFET (Mitsubishi Electric Semiconductor)
  • FS70UM-2 - N-Channel 100V MOSFET (VBsemi)
  • FS70UMH-03 - N-Channel Power MOSFET (Mitsubishi Electric Semiconductor)
  • FS704B2R1CH6A2KAM - 4Gbits NAND Flash + 2Gbits LPDDR2 nMCP (Longsys)
  • FS704B2R1CH6A2KDE - 4Gbits NAND Flash + 2Gbits LPDDR2 nMCP (Longsys)
  • FS70KM-06 - N-Channel Power MOSFET (Mitsubishi Electric Semiconductor)
  • FS70KM-2 - N-Channel Power MOSFET (Mitsubishi Electric Semiconductor)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text

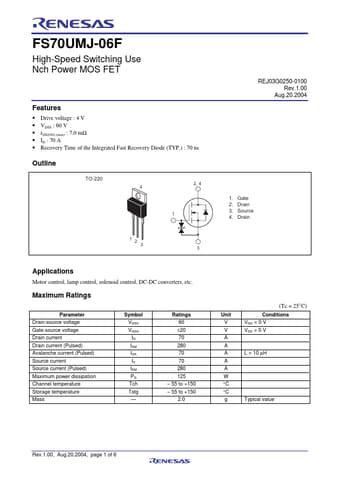

FS70UMJ-06F High-Speed Switching Use Nch Power MOS FET Features • Drive voltage : 4 V • VDSS : 60 V • rDS(ON) (max) : 7.0 mΩ • ID : 70 A • Recovery Time of the Integrated Fast Recovery Diode (TYP.) : 70 ns Outline TO-220 4 2, 4 1 REJ03G0250-0100 Rev.1.00 Aug.20.2004 1. Gate 2. Drain 3. Source 4. Drain 12 3 3 Applications Motor control, lamp control, solenoid control, DC-DC converters, etc. Maximum Ratings Parameter Drain-source voltage Gate-source voltage Drain current Drain current (Pulsed) Avalanche current (Pulsed) Source current Source current (Pulsed) Maximum power dissipation Channel temperature Storage temperature Mass Symbol VDSS VGSS ID IDM IDA IS ISM PD Tch Tstg — Ratings 60 ±20 70 280 70 70 280 125 – 55 to +150 – 55 to +150 2.
