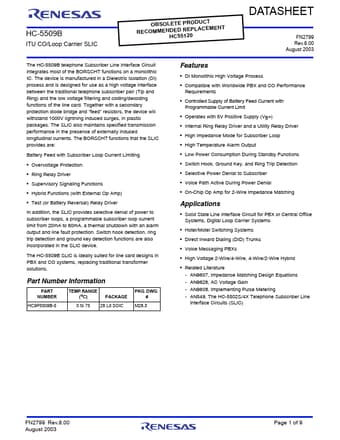

Preview of HC-5509B PDF
HC-5509B Datasheet Preview Page 2 HC-5509B Datasheet Preview Page 3

Datasheet Details

Part number:

HC-5509B

Manufacturer:

Renesas ↗

File Size:

533.48 KB

Description:

Itu co/loop carrier slic.

HC-5509B, ITU CO/Loop Carrier SLIC

HC-5509B ITU CO/Loop Carrier SLIC RECOOMBMSEONLHDECETD5E5PR1R2E0OPLDAUCCETMENT DATASHEET FN2799 Rev.8.00 August 2003 The HC-5509B telephone Subscriber Line Interface Circuit integrates most of the BORSCHT functions on a monolithic IC.

The device is manufactured in a Dielectric Isolation (DI) process and is designed for use as a high voltage interface between the traditional telephone subscriber pair (Tip and Ring) and the low voltage filtering and coding/decoding functions of the line card.

T

HC-5509B Features

* DI Monolithic High Voltage Process

* Compatible with Worldwide PBX and CO Performance Requirements

* Controlled Supply of Battery Feed Current with Programmable Current Limit

* Operates with 5V Positive Supply (VB+)

* Internal Ring Relay Driver and a Utility
