HD74ALVC1G86

2-input Exclusive-OR Gate

Renesas

HD74ALVC1G86 Features

* The basic gate function is lined up as Renesas uni logic series.

* Supplied on emboss taping for high-speed automatic mounting.

* Supply voltage range : 1.2 to 3.6 V Operating temperature range :

* 40 to +85°C

* All inputs VIH (Max.) = 3.6 V (@VCC = 0 V

HD74ALVC1G86 General Description

The HD74ALVC1G86 performs the Boolean functions Y = A ⊕ B or Y = AB + AB in positive logic. A common application is as a true / complement element. If one of the inputs is low, the other input will be reproduced in true form at the output. If one of the inputs is high, the signal on the other input .

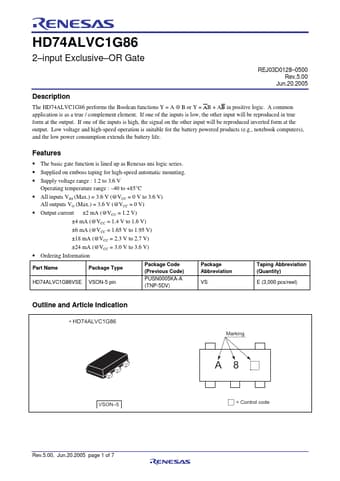

HD74ALVC1G86 Datasheet (72.10 KB)

HD74ALVC1G86 Datasheet Preview — Preview of HD74ALVC1G86 PDF

Datasheet Details

Part number:

HD74ALVC1G86

Manufacturer:

Renesas ↗

File Size:

72.10 KB

Description:

2-input exclusive-or gate.
