HD74BC245A Octal Bus Transceivers

HD74BC245A Description

HD74BC245A Octal Bus Transceivers With 3 State Outputs REJ03D0282 *0400Z (Previous ADE-205-008B (Z)) Rev.4.00 Jul.16.2004 .
The HD74BC245A provides high drivability and operation equal to or better than high speed bipolar standard logic IC by using Bi-CMOS process.

HD74BC245A Features

* low power dissipation that is about 1/5 of high speed bipolar logic IC, when the frequency is 10 MHz. The device has ten buffers with three state outputs in a 20 pin package. Each device has an active low enable input G and a direction control input DiR. When DiR is high, data flows from the A input

📥 Download Datasheet

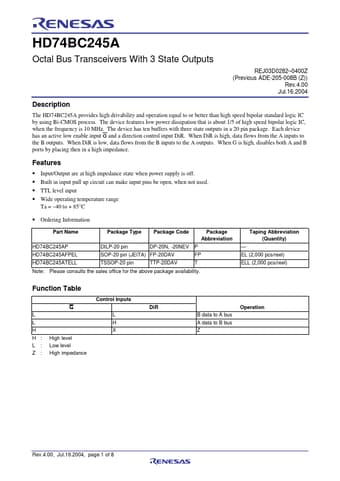

Preview of HD74BC245A PDF
