HZS15-2L Datasheet Silicon Planar Zener Diode

Manufacturer: Renesas

Download the HZS15-2L datasheet PDF. This datasheet also includes the HZS6A1L variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

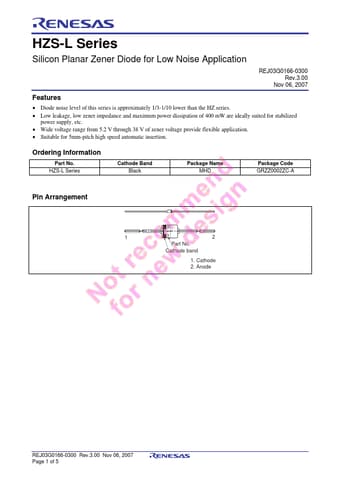

HZS15-2L silicon planar zener diode by Renesas - Datasheet Preview — Note: The manufacturer provides a single datasheet file (HZS6A1L-Renesas.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	HZS15-2L
Manufacturer	Renesas
File Size	154.96 KB
Description	Silicon Planar Zener Diode
Download	HZS15-2L Download (PDF)

Overview

HZS-L Series Silicon Planar Zener Diode for Low Noise Application REJ03G0166-0300 Rev.3.

Key Features

Diode noise level of this series is approximately 1/3-1/10 lower than the HZ series.
Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.
Wide voltage range from 5.2 V through 38 V of zener voltage provide flexible.
