HZS20, HZS2 Datasheet - Renesas

HZS20 Silicon Epitaxial Planar Zener Diode

HZS20 Features

* Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.

* Wide spectrum from 1.6V through 38V of zener voltage provide flexible application.

* Suitable for 5mm-pitch high speed automatic insertion. Order

HZS2-Renesas.pdf

This datasheet PDF includes multiple part numbers: HZS20, HZS2. Please refer to the document for exact specifications by model.

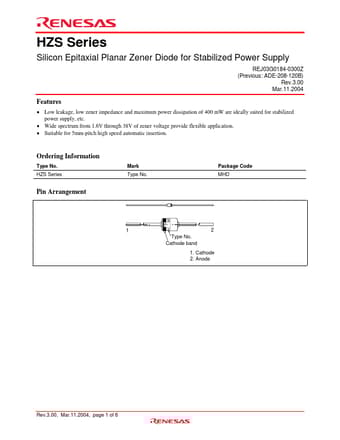

HZS20 Datasheet Preview Page 2 HZS20 Datasheet Preview Page 3

Datasheet Details

Part number:

HZS20, HZS2

Manufacturer:

Renesas ↗

File Size:

52.76 KB

Description:

Silicon epitaxial planar zener diode.

Note:

This datasheet PDF includes multiple part numbers: HZS20, HZS2.
Please refer to the document for exact specifications by model.
