HZS33-1L, HZS6A1L, Silicon Planar Zener Diode

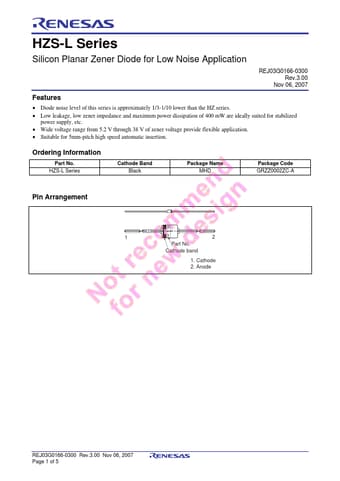

HZS-L Series Silicon Planar Zener Diode for Low Noise Application REJ03G0166-0300 Rev.3.00 Nov 06, 2007 .

HZS6A1L-Renesas.pdf

HZS33-1L Datasheet Preview — This datasheet PDF includes multiple part numbers: HZS33-1L, HZS6A1L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HZS33-1L, HZS6A1L

Manufacturer:

Renesas ↗

File Size:

154.96 KB

Description:

Silicon Planar Zener Diode

Note:

This datasheet PDF includes multiple part numbers: HZS33-1L, HZS6A1L.
Please refer to the document for exact specifications by model.

Features

* Diode noise level of this series is approximately 1/3-1/10 lower than the HZ series.
* Low leakage, low zener impedance and maximum power dissipation of 400 mW are ideally suited for stabilized power supply, etc.
* Wide voltage range from 5.2 V through 38 V of zener voltage
