IDT72201, IDT72421 - CMOS SyncFIFO

Name: IDT72201
SKU: IDT72201-1416234

Renesas

The IDT72201 by Renesas is a CMOS SyncFIFO. Below is the official datasheet preview.

📥 Download Datasheet

IDT72201 CMOS SyncFIFO by Renesas - Datasheet Preview — Official preview page of the **IDT72201** CMOS SyncFIFO datasheet (Renesas).

Datasheet Details

Part number	IDT72201, IDT72421
Manufacturer	Renesas
File Size	262.23 KB
Description	CMOS SyncFIFO
Datasheet	IDT72421-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: IDT72201, IDT72421. Please refer to the document for exact specifications by model.

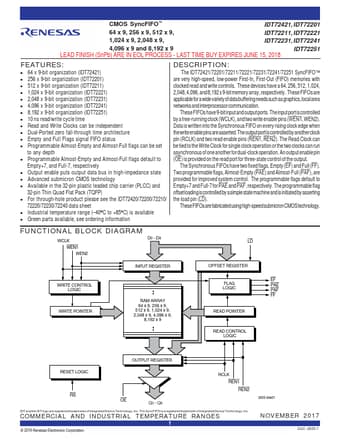

Additional preview pages of the IDT72201 datasheet.

IDT72201 Product details

Description

The IDT72421/72201/72211/72221/72231/72241/72251 SyncFIFO™ are very high-speed, low-power First-In, First-Out (FIFO) memories with clocked read and write controls.

Features

64 x 9-bit organization (IDT72421).
256 x 9-bit organization (IDT72201).
512 x 9-bit organization (IDT72211).
1,024 x 9-bit organization (IDT72221).
2,048 x 9-bit organization (IDT72231).
4,096 x 9-bit organization (IDT72241).
8,192 x 9-bit organization (IDT72251).
10 ns read/write cycle time.
Read and Write Clocks can be independent.
Dual-Ported zero fall-through time architecture.
Empty and Ful.
