ISL28533 - Programmable Gain Instrumentation Amplifiers

Description

.

.

.

Features

  • Ultra high precision front-end amplifier.
  • Zero-drift instrumentation amplifier.
  • Pin selectable 9 gain settings: G = 1 to 1,000.
  • Rail-to-rail input/output.
  • Single-ended output (ISL28533, ISL28534, ISL28535).
  • Differential output (ISL28633, ISL28634, ISL28635).
  • RFI filtered inputs improve EMI rejection.
  • Single supply.
  • . . . . 2.5V to 5.5V.
  • Dual supply.

📥 Download Datasheet

Datasheet preview – ISL28533

Datasheet Details

Part number ISL28533
Manufacturer Renesas
File Size 2.22 MB
Description Programmable Gain Instrumentation Amplifiers
Datasheet download datasheet ISL28533 Datasheet
Additional preview pages of the ISL28533 datasheet.

📁 Similar Datasheet

  • ISL28146 - (ISL28146 / ISL28246) Single and Dual Rail-to-Rail Input-Output (RRIO) Op Amps (Intersil Corporation)
  • ISL28195 - (ISL28194 / ISL28195) Rail-to-Rail Input/Output (RRIO) Op Amps (Intersil Corporation)
  • ISL28246 - Op Amps (Intersil Corporation)
  • ISL28256 - Low Input Bias Current Op Amps (Intersil Corporation)
  • ISL28266 - Op Amps (Intersil Corporation)
  • ISL28274 - Operational Amplifier (Intersil Corporation)
  • ISL28278 - (ISL28278 / ISL28478) Dual Micropower Single Supply Rail-to-Rail Input and Output (RRIO) Precision Op-Amp (Intersil Corporation)
  • ISL28448 - Op Amps (Intersil Corporation)
  • ISL28474 - Operational Amplifier (Intersil Corporation)
  • ISL28478 - (ISL28278 / ISL28478) Dual Micropower Single Supply Rail-to-Rail Input and Output (RRIO) Precision Op-Amp (Intersil Corporation)
Other Datasheets by Renesas
  • ISL28534 - Programmable Gain Instrumentation Amplifiers
  • ISL28535 - Programmable Gain Instrumentation Amplifiers
  • ISL28005 - Rail-to-Rail Input Current Sense Amplifier
  • ISL28006 - Rail to Rail Input Current Sense Amplifier
  • ISL28022 - Precision Digital Power Monitor
  • ISL28023 - Precision Digital Power Monitor
  • ISL28025 - Precision Digital Power Monitor
  • ISL28107 - Low Noise Operational Amplifiers

Full PDF Text Transcription

Click to expand full text

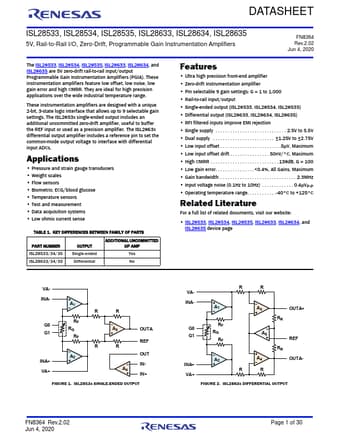

DATASHEET ISL28533, ISL28534, ISL28535, ISL28633, ISL28634, ISL28635 5V, Rail-to-Rail I/O, Zero-Drift, Programmable Gain Instrumentation Amplifiers FN8364 Rev.2.02 Jun 4, 2020 The ISL28533, ISL28534, ISL28535, ISL28633, ISL28634, and ISL28635 are 5V zero-drift rail-to-rail input/output Programmable Gain Instrumentation Amplifiers (PGIA). These instrumentation amplifiers feature low offset, low noise, low gain error and high CMRR. They are ideal for high precision applications over the wide industrial temperature range. These instrumentation amplifiers are designed with a unique 2-bit, 3-state logic interface that allows up to 9 selectable gain settings.
