ISL3283E

RS-485/RS-422 Receivers

Renesas

ISL3283E Features

* an active high Rx enable pin and the ISL3282E and ISL3283E include an active low enable pin. All versions are offered in Industrial and Extended Industrial (-40°C to +125°C) temperature ranges. A 26% smaller footprint is available with the ISL3282E TDFN package. These devices, plus the ISL3284E, als

ISL3283E General Description

PIN NAME FUNCTION RO Receiver output: If A - B  -50mV, RO is high; If A - B  -200mV, RO is low; RO = High if A and B are unconnected (floating) or shorted. RE, RE Receiver output enable. RO is enabled when RE is high, or RE is low; RO is high impedance when RE is low, or RE is high. If the .

ISL3283E Datasheet (0.97 MB)

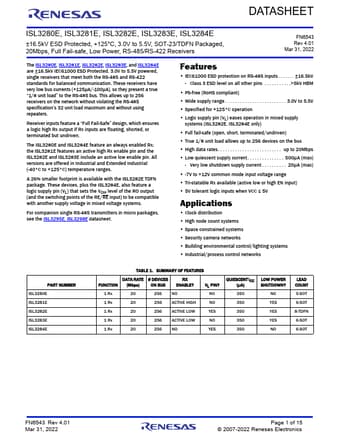

ISL3283E Datasheet Preview — Preview of ISL3283E PDF

Datasheet Details

Part number:

ISL3283E

Manufacturer:

Renesas ↗

File Size:

0.97 MB

Description:

Rs-485/rs-422 receivers.
DATASHEET ISL3280E, ISL3281E, ISL3282E, ISL3283E, ISL3284E ±16.5kV ESD Protected, +125°C, 3.0V to 5.5V, SOT-23/TDFN Packaged, 20Mbps, Full Fail-safe,.
