ISL54410 - Audio/USB 2.0 Wired-OR Switch

Description

TDFN 1 2 3 4 5 6 7 8 PD µTQFN 10 1 2 3 4 5 6 7 8 9 - ISL54409 and ISL54410 NAME FUNCTION VDD Power Supply IN Logic Control; Internal 4M pull down COM- Audio Left Output COM+ Audio Right Output GND IC Ground Connection RIN Audio Right Input LIN Audio Left Input NC Not Connected

Features

  • Single Supply Operation (VDD) . . . +2.7V to +5.0V.
  • Negative Signal Handling (See “Audio/USB wired-OR.

📥 Download Datasheet

Datasheet preview – ISL54410

Datasheet Details

Part number ISL54410
Manufacturer Renesas
File Size 479.61 KB
Description Audio/USB 2.0 Wired-OR Switch
Datasheet download datasheet ISL54410 Datasheet
Additional preview pages of the ISL54410 datasheet.

📁 Similar Datasheet

  • ISL5100A - Quad 18V Pin Electronics Driver/Window Comparator (Intersil Corporation)
  • ISL5239 - Pre-Distortion Linearizer (Intersil Corporation)
  • ISL55112 - High-Speed Dual Precision CCD Driver (Intersil Corporation)
  • ISL55161 - SOC Dual Channel 400MHz Pin Electronics/DAC/PMU (Elevate)
  • ISL55162 - SOC Dual Channel 300MHz Pin Electronics/DAC/PMU/Deskew (Elevate)
  • ISL55163 - SOC Dual Channel 400MHz Pin Electronics/DAC/PMU (Elevate)
  • ISL55180 - SOC 8-Channel DPS (Elevate)
  • ISL55185 - SOC Octal Wide Voltage PMU/Load (Elevate)
  • ISL55187 - SOC Pin Electronics Companion PMU/DAC (Elevate)
  • ISL55188 - Wide Voltage Pin SOC (Elevate)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text

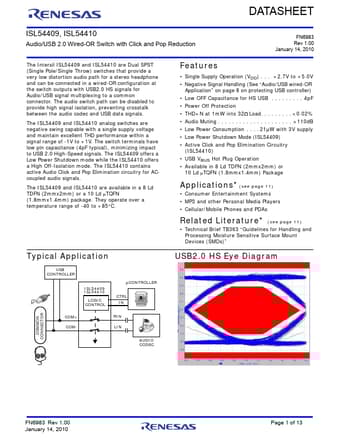

DATASHEET ISL54409, ISL54410 Audio/USB 2.0 Wired-OR Switch with Click and Pop Reduction FN6983 Rev 1.00 January 14, 2010 The Intersil ISL54409 and ISL54410 are Dual SPST (Single Pole/Single Throw) switches that provide a very low distortion audio path for a stereo headphone and can be connected in a wired-OR configuration at the switch outputs with USB2.0 HS signals for Audio/USB signal multiplexing to a common connector. The audio switch path can be disabled to provide high signal isolation, preventing crosstalk between the audio codec and USB data signals. The ISL54409 and ISL54410 analog switches are negative swing capable with a single supply voltage and maintain excellent THD performance within a signal range of -1V to +1V.
