ISL6208C - High Voltage Synchronous Rectified Buck MOSFET Drivers

Product Overview

Renesas

Part number	ISL6208C
Manufacturer	Renesas
File Size	413.21 KB
Description	High Voltage Synchronous Rectified Buck MOSFET Drivers
Datasheet	ISL6208C Datasheet

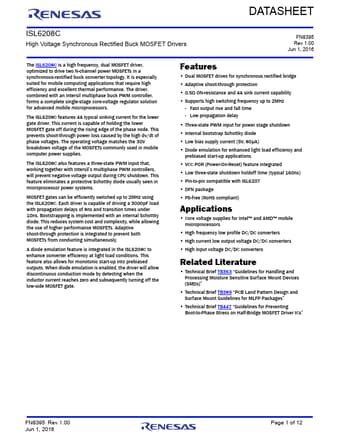

Additional preview pages of the ISL6208C datasheet.

4A typical sinking current for the lower gate driver. This current is capable of holding the lower MOSFET gate off during the rising edge of the phase node. This prevents shoot-through power loss caused by the high dv/dt of phase voltages. The operating voltage matches the 30V breakdown voltage of the MOSFETs commonly used in mobile computer power supplies. The ISL6208C also features a three-state PWM input that, working toge.
