ISL62381C, ISL62381 Quad or Triple-Output System Power Supply Controller

ISL62381C Description

DATASHEET ISL62381, ISL62382, ISL62383, ISL62381C, ISL62382C, ISL62383C High-Efficiency, Quad or Triple-Output System Power Supply Controller for Not.

ISL62381C Features

* High Performance R3 Technology
* Fast Transient Response
* ±1% Output Voltage Accuracy: -10°C to +100°C
* Two Fully Programmable Switch-Mode Power Supplies with Independent Operation
* Programmable Switching Frequency
* Integrated MOSFET Drivers and

ISL62381C Applications

* an ultrasonic DCM mode is included, which limits the minimum switching frequency to approximately 28kHz. The ISL62381, ISL62382, ISL62381C and ISL62382C are available in a 32 Ld 5x5 TQFN package, and the ISL62383 and ISL62383C are available in a 28 Ld 4x4 TQFN package. This family of controllers ca

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISL62381C, ISL62381. Please refer to the document for exact specifications by model.

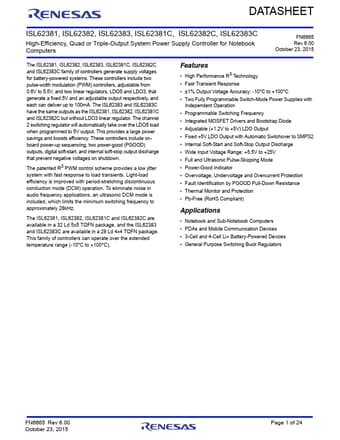

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISL62381C, ISL62381
Manufacturer
Renesas ↗
File Size
1.07 MB
Datasheet
ISL62381-Renesas.pdf
Description
Quad or Triple-Output System Power Supply Controller
Note
This datasheet PDF includes multiple part numbers: ISL62381C, ISL62381.
Please refer to the document for exact specifications by model.
