ISL6529A Dual Regulator-Synchronous Rectified Buck PWM and Linear Power Controllers

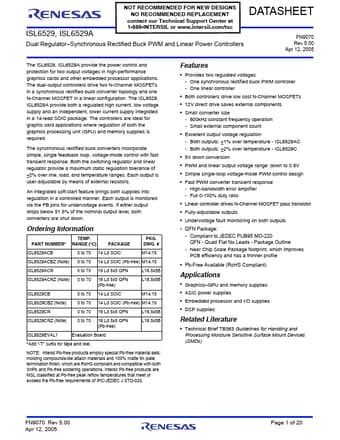

NOT RECOMMENDED FOR NEW DESIGNS DATASHEETNO RECOMMENDED REPLACEMENT contact our Technical Support Center at ISL6529, ISL6529A 1-888-INTERSIL or www.intersil.com/tsc FN9070 Dual Regulator Synchronous Rectified Buck PWM and Linear Power Controllers Rev 5.00 Apr 12, 2005 The ISL6529, ISL6529A provide the power control and protection for two output voltages in high-performance graphics cards and other embedded processor applications. The dual-output controllers drive two N-Channel MO.

ISL6529-Renesas.pdf

ISL6529A Datasheet Preview — This datasheet PDF includes multiple part numbers: ISL6529A, ISL6529. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ISL6529A, ISL6529

Manufacturer:

Renesas ↗

File Size:

1.03 MB

Description:

Dual regulator-synchronous rectified buck pwm and linear power controllers.

Note:

This datasheet PDF includes multiple part numbers: ISL6529A, ISL6529.
Please refer to the document for exact specifications by model.
