Datasheet ISL68229, ISL68239 Digital Triple Output, 12-Phase PWM Controller The ISL68229 and ISL68239 are digital triple output multiphase (X+Y+Z ≤ 12) PWM controllers supporting PMBus V1.3/AVSBus interfaces.

The controller can be configured to support any phase assignments up to a maximum of twelve phases across the three outputs (X, Y, and Z).

For example, 10+1+1, 10+2, 8+2+1, 1+1, or even single output operation as a 12+0 configuration is supported.

Increased power density, combined with su

ISL68239 Features

* allow you to extract maximum efficiency from the converter regardless of load conditions. You can use the intuitive Renesas PowerNavigatorâ„¢ to configure and monitor the device. With minimal external components, easy configuration, robust fault management, and highly accurate regulation capability, i

ISL68229-Renesas.pdf

This datasheet PDF includes multiple part numbers: ISL68239, ISL68229. Please refer to the document for exact specifications by model.

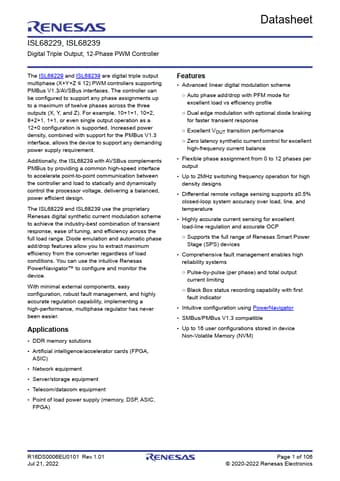

ISL68239 Datasheet Preview Page 2 ISL68239 Datasheet Preview Page 3
