ISL69158 Datasheet - Renesas

ISL69158 VR13/VR13.HC/IMVP8 PWM Controller

of circuits, software and other related information in this document are provided only to illustrate the operation of semiconductor products and application examples. You are fully responsible for the incorporation or any other use of the circuits, software, and information in the design of your pr.
DATA SHORT To request the full datasheet, please visit www.intersil.com/products/isl69158 ISL69158 Digital Dual Output, 7-Phase Configurable, VR13/VR13.HC/IMVP8 PWM Controller FN8913 Rev. 2.00 Feb 8, 2018 The ISL69158 is a digital dual output, flexible multiphase (X+Y ≤ 7) PWM controller designed to be compliant with Intel VR13/VR13.HC and IMVP8 specifications. The digital multiphase controller can be configured to support any desired phase assignments up to a maximum of seven phases across .

ISL69158 Features

* allow the user to extract maximum efficiency from the converter regardless of load conditions. The ISL69158 supports a comprehensive fault management system to enable the design of highly reliable systems. From a multitiered overcurrent protection scheme to the configurable power-good and catastroph

ISL69158 Datasheet (220.04 KB)

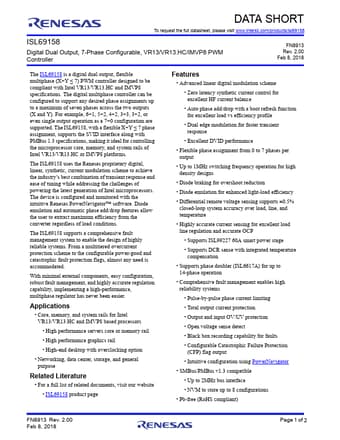

Preview of ISL69158 PDF

Datasheet Details

Part number:

ISL69158

Manufacturer:

Renesas ↗

File Size:

220.04 KB

Description:

Vr13/vr13.hc/imvp8 pwm controller.
