ISL78692 - Li-ion/Li-Polymer Battery Charger

ISL78692 Li-ion/Li-Polymer Battery Charger The ISL78692 is an integrated single-cell Li-ion or Li-polymer battery charger capable of operating with an input voltage as low as 2.65V (cold crank case).

This charger is designed to work with various types of AC adapters or a USB port.

The ISL78692 operates as a linear charger when the AC adapter is a voltage source.

The battery is charged in a CC/CV (constant current/constant voltage) profile.

The charge current is programmable with an external resi

ISL78692 Features

* charge current thermal foldback to guarantee safe operation when the printed circuit board’s thermal dissipation is limited due to space constraints. Additional features include preconditioning of an over-discharged battery, an NTC thermistor interface for charging the battery in a safe temperature

ISL78692-Renesas.pdf

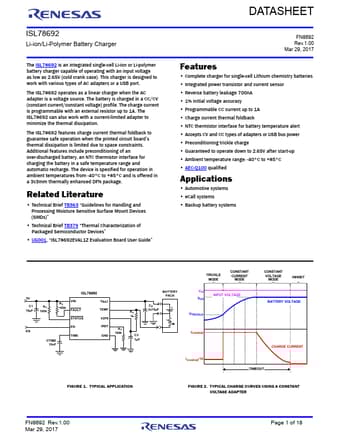

Preview of ISL78692 PDF
ISL78692 Datasheet Preview Page 2 ISL78692 Datasheet Preview Page 3

Datasheet Details

Part number:

ISL78692

Manufacturer:

Renesas ↗

File Size:

0.97 MB

Description:

Li-ion/li-polymer battery charger.
