ISL97686

4-Channel LED Driver

ISL97686 Features

* 4 x 160mA, 75V rated channels with integrated channel regulation FETs

* Channels can be ganged for high current - 2 x 350mA - 1 x 700mA

* 9V~32V input voltage

* Dimming modes: - Independent channel dimming control with SPI - PWM dimming with adjustable output freque

ISL97686 General Description

TQFN SOIC PIN NAME PIN TYPE PIN DESCRIPTION 15 SDO I Serial data output to next driver 26 CS I Chip select 37 CLK I Serial clock 48 SDI I Serial data input 59 VLOGIC S Internal 2.5V Digital Bias Regulator. Needs Decoupling Capacitor added to ground 6 10 EN_VSYNC I Frame synchron.

ISL97686 Datasheet (1.10 MB)

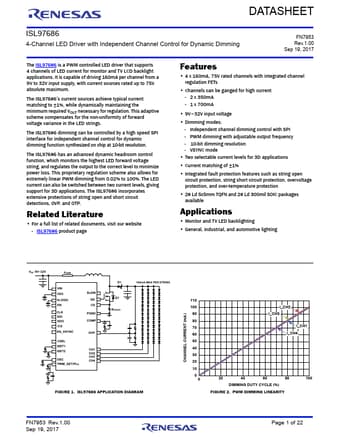

Preview of ISL97686 PDF

Datasheet Details

Part number:

ISL97686

Manufacturer:

Renesas ↗

File Size:

1.10 MB

Description:

4-channel led driver.
DATASHEET ISL97686 4-Channel LED Driver with Independent Channel Control for Dynamic Dimming FN7953 Rev.1.00 Sep 19, 2017 The ISL97686 is a PWM con.
