M51954B, M51953A Datasheet - Renesas

M51954B Voltage Detecting / System Resetting

M51953A,B/M51954A,B are semiconductor integrated circuits designed for detecting supply voltage and resetting all types of logic circuits such as CPUs. They include a built-in delay circuit to provide the desired retardation time simply by adding an external capacitor. They fined extensive applicati.

M51954B Features

* Few external parts

* Large delay time with a capacitor of small capacitance (td ≈ 100 ms, at 0.33 µF) (M51953, M51954)

* Low threshold operating voltage (Supply voltage to keep low-state at low supply voltage): 0.6 V (Typ) at RL = 22 kΩ

* Wide supply voltage range:

M51953A-Renesas.pdf

This datasheet PDF includes multiple part numbers: M51954B, M51953A. Please refer to the document for exact specifications by model.

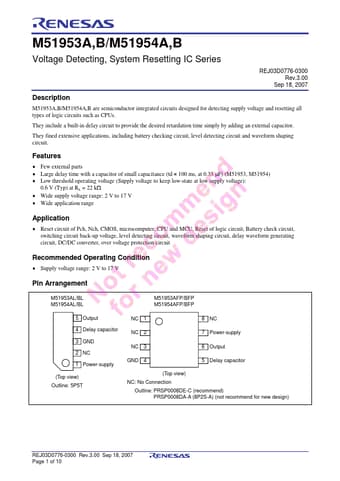

M51954B Datasheet Preview Page 2 M51954B Datasheet Preview Page 3

Datasheet Details

Part number:

M51954B, M51953A

Manufacturer:

Renesas ↗

File Size:

217.18 KB

Description:

Voltage detecting / system resetting.

Note:

This datasheet PDF includes multiple part numbers: M51954B, M51953A.
Please refer to the document for exact specifications by model.
