M52042FP - NTSC Video Chroma Signal Processor

Product Overview

Renesas

Part number	M52042FP
Manufacturer	Renesas
File Size	239.57 KB
Description	NTSC Video Chroma Signal Processor
Datasheet	M52042FP Datasheet

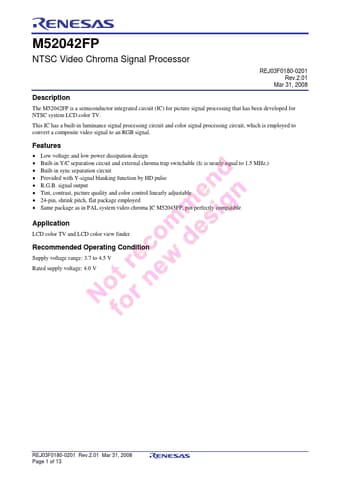

Additional preview pages of the M52042FP datasheet.

The M52042FP is a semiconductor integrated circuit (IC) for picture signal processing that has been developed for NTSC system LCD color TV.

Low voltage and low power dissipation design.
Built-in Y/C separation circuit and external chroma trap switchable (fc is nearly equal to 1.5 MHz. ).
Built-in sync separation circuit.
Provided with Y-signal blanking function by HD pulse.
R. G. B. signal output.
Tint, contrast, picture quality and color control linearly adjustable.
24-pin, shrink pitch, flat package employed.
Same package as in PAL system video chroma IC M52045F.
