QLx111GRx Datasheet - Renesas

QLx111GRx - 11.1Gb/s Lane Extender

PIN NAME VDD IN[P,N] CP[A,B] OUT[P,N] LOS DT GND PIN NUMBER DESCRIPTION 1, 4, 12, 9 Power supply.

1.2V supply voltage.

The use of parallel 100pF and 10nF decoupling capacitors to ground is recommended for each of these pins for broad high-frequency noise suppression.

2, 3 Equalizer 1 different

QLx111GRx 11.1Gb/s Lane Extender The QLx111GRx is a settable single-channel receiveside equalizer with extended functionality for advanced protocols operating with line rates up to 11.1Gb/s such as 10G Ethernet (10GBase-CR).

The QLx111GRx compensates for the frequency dependent attenuation of copper twin-axial cables, extending the signal reach up to at least 10m on 28AWG cable.

The small form factor, highly-integrated design is ideal for high-density data transmission applications including act

QLx111GRx Features

* Supports data rates up to 11.1Gb/s

* Low power (

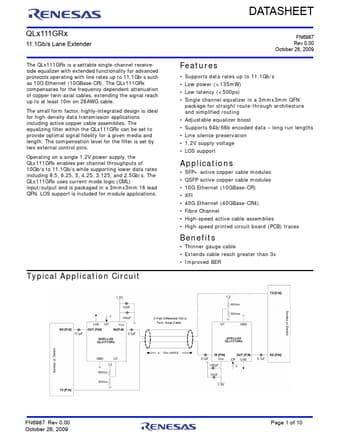

QLx111GRx-Renesas.pdf
