R7FA0E1073CSC, R7FA0E1073CFJ - Microcontrollers

Renesas

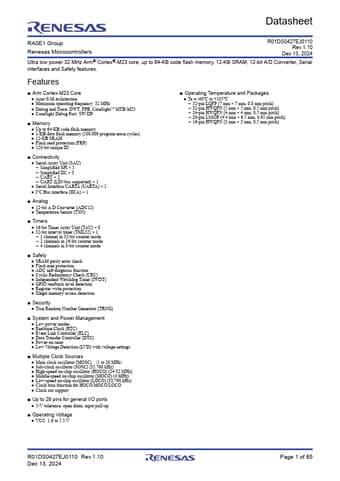

R7FA0E1073CSC Datasheet Preview — This datasheet PDF includes multiple part numbers: R7FA0E1073CSC, R7FA0E1073CFJ. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	R7FA0E1073CSC, R7FA0E1073CFJ
Manufacturer	Renesas ↗
File Size	1.65 MB
Description	Microcontrollers
Datasheet	R7FA0E1073CFJ-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: R7FA0E1073CSC, R7FA0E1073CFJ. Please refer to the document for exact specifications by model.

R7FA0E1073CSC Product details

Description

Maximum operating frequency: up to 32 MHz Arm Cortex-M23 core: Revision: r1p0-00rel0 Armv8-M architecture profile Single-cycle integer multiplier 19-cycle integer divider SysTick timer: Driven by SYSTICCLK (LOCO) or ICLK Table 1.2 Memory Feature Code flash memory Data flash memory Option-setting memory SRAM Functional description Maximum 64-KB of code flash memory.1-KB of data flash memory.The option-setting memory determine

Features

Features.
Arm Cortex-M23 Core.
Armv8-M architecture.
Maximum operating frequency: 32 MHz.
Debug and Trace: DWT, FPB, CoreSight™ MTB-M23.
CoreSight Debug Port: SW-DP.
Memory.
Up to 64-KB code flash memory.
1-KB data flash memory (100,000 program/erase cycles).
12-KB SRAM.
Flash read protection (FRP).
128-bit unique ID.
Connectivity.
Serial Array Unit (SAU).
Simplified SPI × 3.
Simplified IIC × 3.
UART ×.
