RC19013
Description

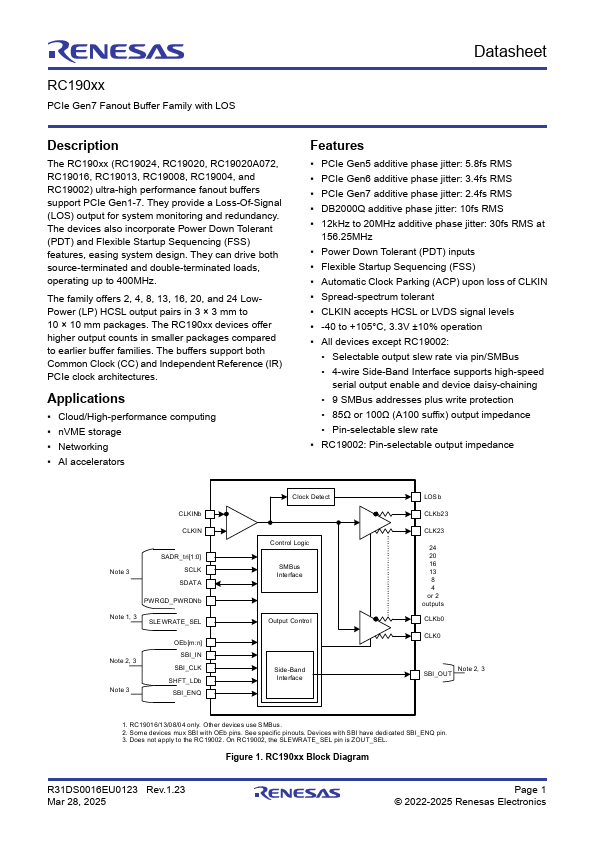

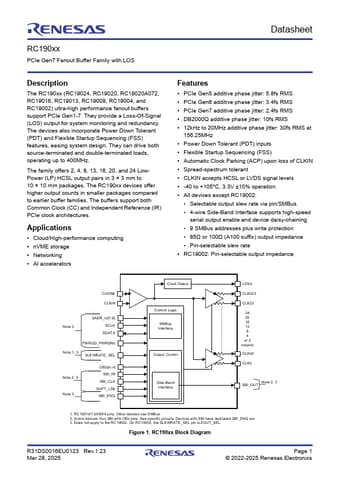

The RC190xx (RC19024, RC19020, RC19020A072, RC19016, RC19013, RC19008, RC19004, and RC19002) ultra-high performance fanout buffers support PCIe Gen1-7. They provide a Loss-Of-Signal (LOS) output for system monitoring and redundancy. The devices also incorporate Power Down Tolerant (PDT) and Flexible Startup Sequencing (FSS) features
, easing system design. They can drive both source-terminated and double-terminated loads, operating up to 400MHz.
The family offers 2, 4, 8, 13, 16, 20, and 24 Low Power (LP) HCSL output pairs in 3 × 3 mm to 10 × 10 mm packages. The RC190xx devices offer higher output counts in smaller packages pared to earlier buffer families. The buffers support both mon Clock (CC) and Independent Reference (IR) PCIe clock architectures.
Applications
- Cloud/High-performance puting
- n VME storage
- Networking
- AI accelerators
Features
- PCIe Gen5 additive phase jitter: 5.8fs RMS
- PCIe Gen6 additive phase jitter: 3.4fs RMS
- PCIe Gen7 additive phase jitter:...
