RC19020, RC19024A - PCIe Gen5/6 Fanout Buffer

Renesas

📥 Download Datasheet

RC19020 Datasheet Preview — This datasheet PDF includes multiple part numbers: RC19020, RC19024A. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RC19020, RC19024A
Manufacturer	Renesas ↗
File Size	2.24 MB
Description	PCIe Gen5/6 Fanout Buffer
Datasheet	RC19024A-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: RC19020, RC19024A. Please refer to the document for exact specifications by model.

RC19020 Product details

Description

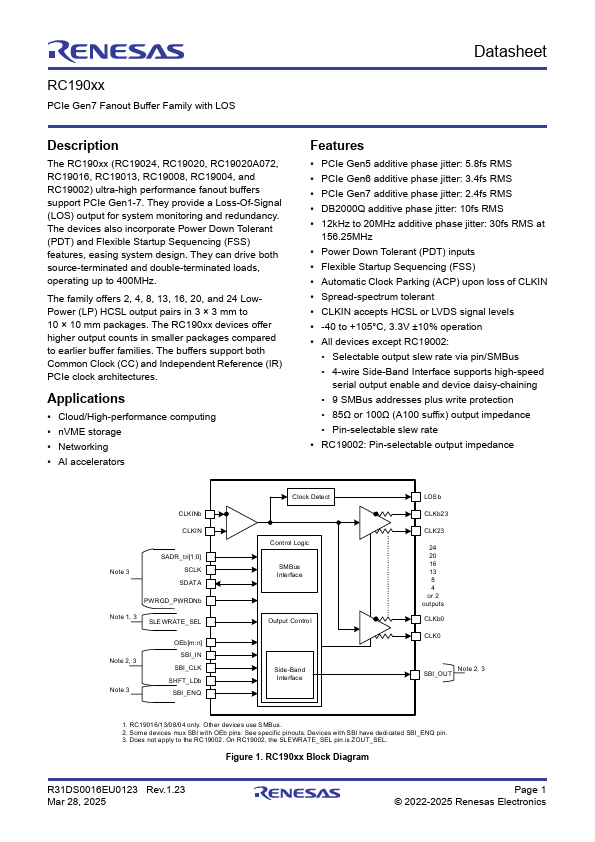

The RC190xx (RC19024, RC19020, RC19020A072, RC19016, RC19013, RC19008, RC19004, and RC19002) ultra-high performance fanout buffers support PCIe Gen1-7.

Features

easing system design. They can drive both source-terminated and double-terminated loads, operating up to 400MHz. The family offers 2, 4, 8, 13, 16, 20, and 24 LowPower (LP) HCSL output pairs in 3 × 3 mm to 10 × 10 mm packages. The RC190xx devices offer higher output counts in smaller packages compared to earlier buffer families. The buffers support both Common Clock (CC) and Independent Reference (IR) PCIe clock architectures.
