RJG0601JSP Dual-Channel FET

RJG0601JSP Description

Preliminary Datasheet RJG0601JSP ±60V, ±1.5A, N Channel, P Channel Thermal FET Power Switching R07DS1213EJ0200 Rev.2.00 Nov 01, 2016 .
This FET has the over temperature shut-down capability sensing to the junction temperature.

RJG0601JSP Features

* Built-in the over temperature shut-down circuit.
* High endurance capability against to the short circuit.
* Latch type shut down operation (need 0 voltage recovery).
* Built-in the current limitation circuit.
* High density mounting
* Power supply voltage applies 12 V.

📥 Download Datasheet

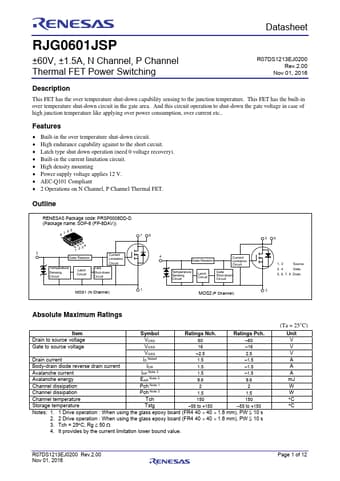

Preview of RJG0601JSP PDF
datasheet Preview Page 2 datasheet Preview Page 3
