RKP403KS - Composite Pin Diode

Renesas

📥 Download Datasheet

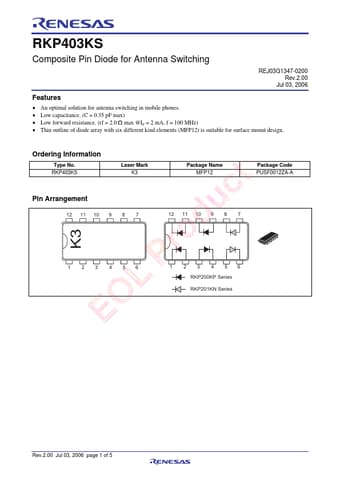

RKP403KS Datasheet Preview — Preview of RKP403KS PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RKP403KS
Manufacturer	Renesas ↗
File Size	94.78 KB
Description	Composite Pin Diode
Datasheet	RKP403KS-Renesas.pdf

RKP403KS Product details

Features

An optimal solution for antenna switching in mobile phones.
Low capacitance. (C = 0.35 pF max).
Low forward resistance. (rf = 2.0 Ω max @IF = 2 mA, f = 100 MHz).
Thin outline of diode array with six different kind elements (MFP12) is suitable for surface mount design. Ordering Information Type No. RKP403KS Laser Mark K3 Package Name MFP12 Package Code PUSF0012ZA-A Pin Arrangement 12 11 10 9 8 7 12 11 10 9 8 7 K3 1 2 3 4 56 1 2 3 4 56 RKP200KP Series.
