RMLV1616AGBG-5S2 - 16Mb Advanced LPSRAM

This page provides the datasheet information for the RMLV1616AGBG-5S2, a member of the RMLV1616AGSA-5S2 16Mb Advanced LPSRAM family.

Datasheet Summary

Description

The RMLV1616A Series is a family of 16-Mbit static RAMs organized 1,048,576-word × 16-bit, fabricated by Renesas’s high-performance Advanced LPSRAM technologies.

The RMLV1616A Series has realized higher density, higher performance and low power consumption.

Features

  • Single 3V supply: 2.7V to 3.6V.
  • Access time: 55ns (max. ).
  • Current consumption: ── Standby: 0.5µA (typ. ).
  • Common data input and output ── Three state output.
  • Directly TTL compatible ── All inputs and outputs.
  • Battery backup operation Part Name Information Part Name Access time Temperature Range RMLV1616AGSA-5S2 Package 12mm x 20mm 48pin plastic TSOP (I) RMLV1616AGSD-5S2 55 ns -40 ~ +85°C 10.79mm × 10.49mm 52pin plastic µTSOP (II) RMLV1616AGBG-5S2 48-ball.

📥 Download Datasheet

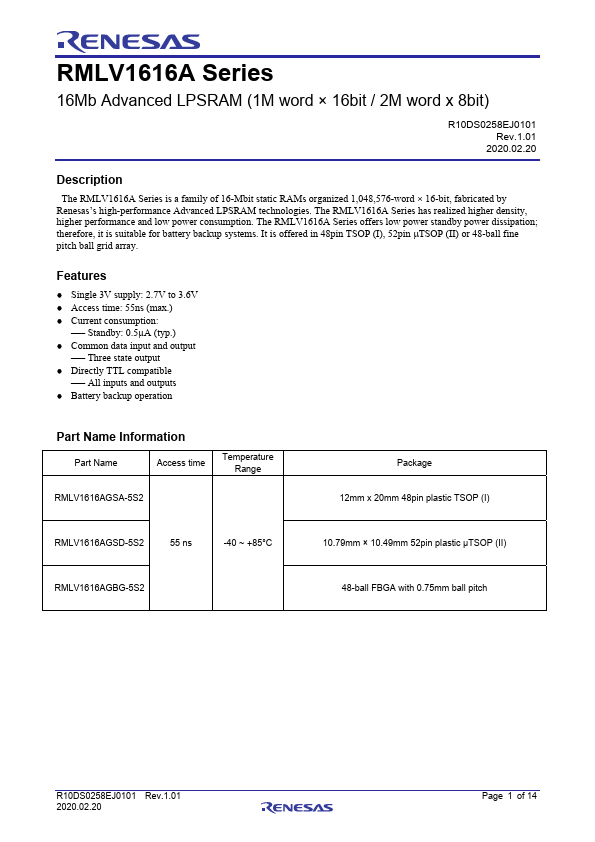

Datasheet preview – RMLV1616AGBG-5S2

Datasheet Details

Part number RMLV1616AGBG-5S2
Manufacturer Renesas
File Size 340.78 KB
Description 16Mb Advanced LPSRAM
Datasheet download datasheet RMLV1616AGBG-5S2 Datasheet

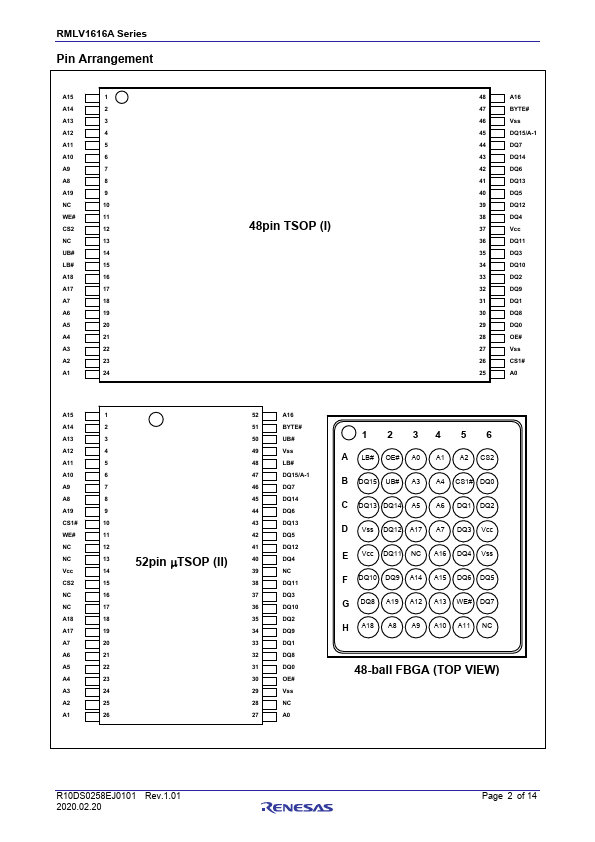

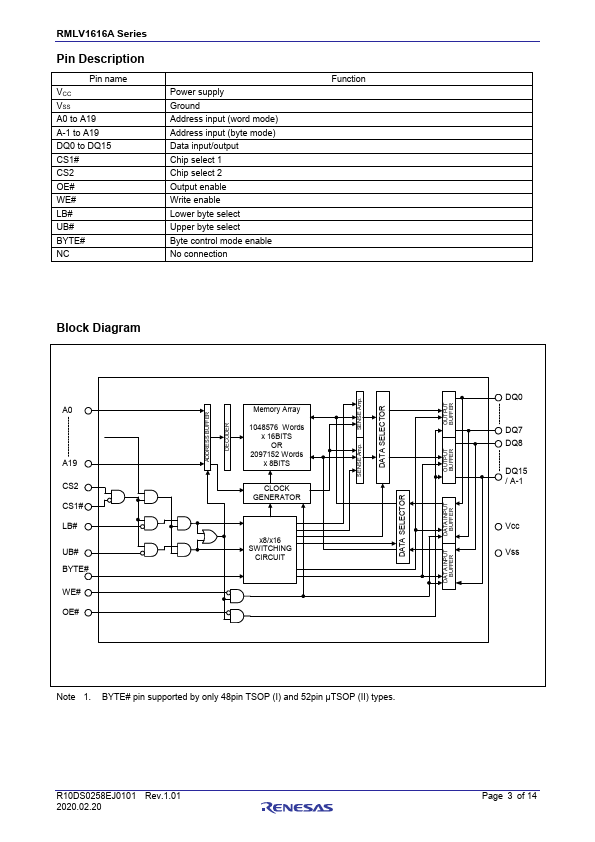

Additional preview pages of the RMLV1616AGBG-5S2 datasheet.

📁 Similar Datasheet

  • RML1371MH48D7F-667A - DDR2 SDRAM / 240Pin Unbuffered DIMM (Ramaxel)
  • RMLA3565-58 - Wideband Low Noise MMIC Amplifier (ETC)
  • RMLA3565C - Wideband Low Noise MMIC Amplifier (Fairchild Semiconductor)
Other Datasheets by Renesas

Full PDF Text Transcription

Click to expand full text
RMLV1616A Series 16Mb Advanced LPSRAM (1M word × 16bit / 2M word x 8bit) R10DS0258EJ0101 Rev.1.01 2020.02.20 Description The RMLV1616A Series is a family of 16-Mbit static RAMs organized 1,048,576-word × 16-bit, fabricated by Renesas’s high-performance Advanced LPSRAM technologies. The RMLV1616A Series has realized higher density, higher performance and low power consumption. The RMLV1616A Series offers low power standby power dissipation; therefore, it is suitable for battery backup systems. It is offered in 48pin TSOP (I), 52pin TSOP (II) or 48-ball fine pitch ball grid array. Features  Single 3V supply: 2.7V to 3.6V  Access time: 55ns (max.)  Current consumption: ── Standby: 0.5µA (typ.
