RTD120 - Silicon-Based Thermopile Detector

Renesas

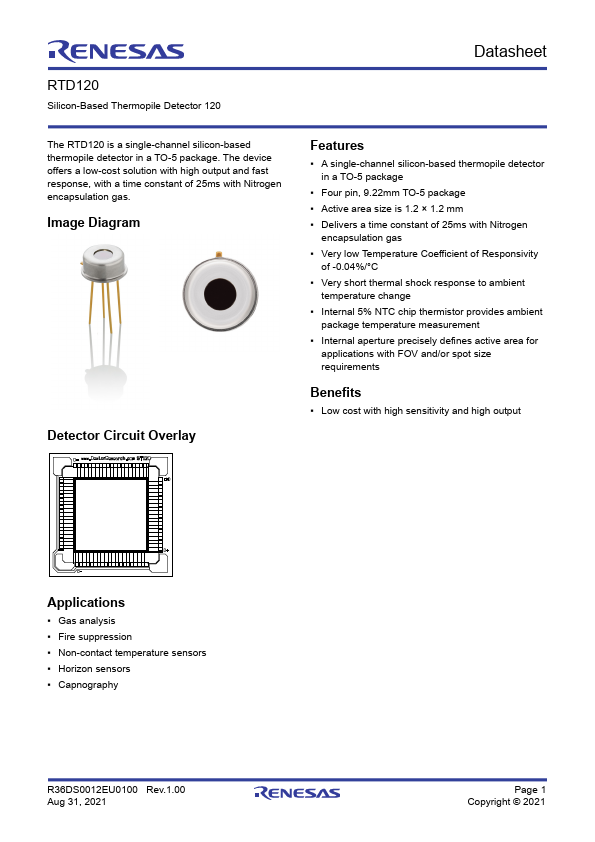

The RTD120 by Renesas is a Silicon-Based Thermopile Detector. Below is the official datasheet preview.

📥 Download Datasheet

RTD120 Silicon-Based Thermopile Detector by Renesas - Datasheet Preview — Official preview page of the **RTD120** Silicon-Based Thermopile Detector datasheet (Renesas).

Datasheet Details

Part number	RTD120
Manufacturer	Renesas
File Size	379.62 KB
Description	Silicon-Based Thermopile Detector
Datasheet	RTD120-Renesas.pdf
Additional preview pages of the RTD120 datasheet.

RTD120 Product details

Description

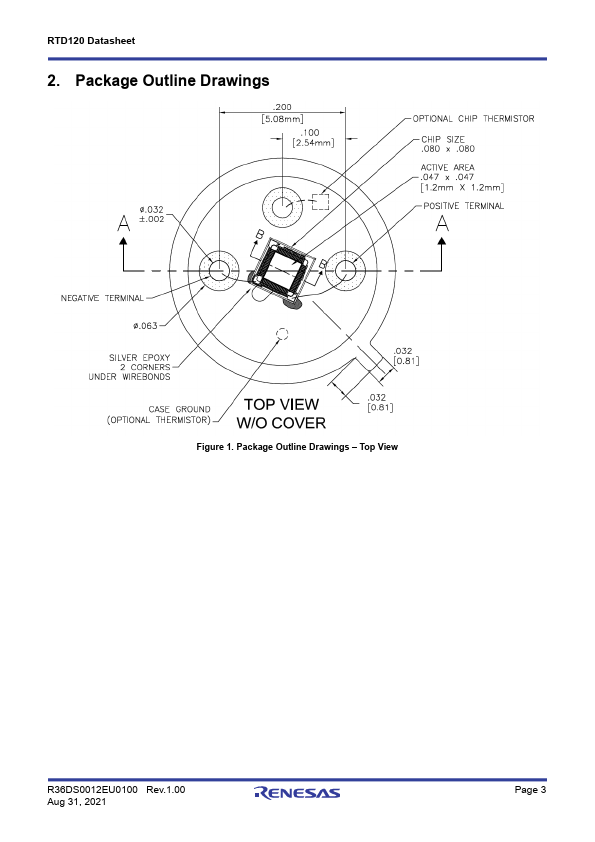

see Package Outline Drawings Package Type TO-5 Standard package hole size: 0.060” × 0.060” Ta Operating Temperature -50 +125 °C CO2 Filter, Central Wave 4.260 µm Length 1. General specifications: Flat spectral response from 100nm to > 100µm.Linear signal output from 10-6 to 0.1W/cm2. Maximum incident radiance 0.1W/cm2, damage threshold ≥ .5W/cm2. 2. Test conditions: 500K Blackbody source; Detector active surface 10cm from 0.6513cm diameter Blackbody Aperture.3. A is detector area

Features

A single-channel silicon-based thermopile detector in a TO-5 package.
Four pin, 9.22mm TO-5 package.
Active area size is 1.2 × 1.2 mm.
Delivers a time constant of 25ms with Nitrogen encapsulation gas.
Very low Temperature Coefficient of Responsivity of -0.04%/°C.
Very short thermal shock response to ambient temperature change.
Internal 5% NTC chip thermistor provides ambient package temperature measurement.
Internal aperture precisely defines active area.
