SLG55584 - USB Host Charger Identification Analog Switches

Description

The SLG55584/SLG55584A is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit.

Features

  • High Speed USB Switching.
  • Low 4.0 pF (typ) On Capacitance.
  • Low 4.0 Ω (typ) On Resistance.
  • Low 0.5 Ω (typ) On Resistance Flatness.
  • 4.5 V to 5.5 V Supply Range.
  • Low Supply Current.
  • Automatic Current-Limit Switch Control.
  • Automatic USB Charger Identification Circuit.
  • CDP Support (active USB 2.0 data communication with 1.5 A charging).
  • Automatic CDP/SDP mode support with SMART-CDP=1 for "Always Data Communicat.

📥 Download Datasheet

Datasheet Details

Part number SLG55584
Manufacturer Renesas
File Size 245.18 KB
Description USB Host Charger Identification Analog Switches
Datasheet download datasheet SLG55584 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SLG55596 USB Host Charger Identification Analog Switches Silego
SLG55596A USB Host Charger Identification Analog Switches Silego
SLG55021-200010 High Voltage Gate Driver Dialog Semiconductor
SLG55021-200010V High Voltage Gate Driver Silego
SLG55022-200030 High Voltage Gate Driver Dialog Semiconductor

Other Datasheets by Renesas

Part Number Description
SLG55584A USB Host Charger Identification Analog Switches
SLG55583 USB Host Charger Identification Analog Switche
SLG55583A USB Host Charger Identification Analog Switche
SLG55544 USB Charging Port Power Switch and Controller
SLG55550 USB Host Charger Identification Analog Switches

Full PDF Text Transcription

Click to expand full text

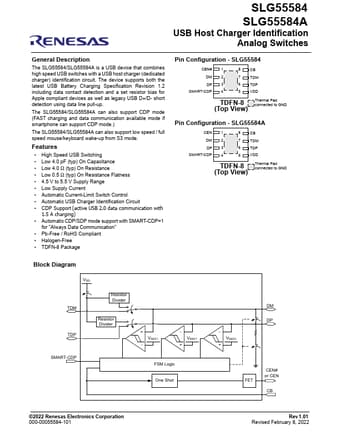

SLG55584 SLG55584A USB Host Charger Identification  Analog Switches General Description The SLG55584/SLG55584A is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit. The device supports both the latest USB Battery Charging Specification Revision 1.2 including data contact detection and a set resistor bias for Apple compliant devices as well as legacy USB D+/D- short detection using data line pull-up. The SLG55584/SLG55584A can also support CDP mode (FAST charging and data communication available mode if smartphone can support CDP mode.) The SLG55584/SLG55584A can also support low speed / full speed mouse/keyboard wake-up from S3 mode. Features • High Speed USB Switching • Low 4.0 pF (typ) On Capacitance • Low 4.
