SLG55594A Datasheet, switches equivalent, Renesas

PDF File Details

Part number: SLG55594A

Manufacturer: Renesas (https://www.renesas.com/)

File Size: 404.08KB

Download: 📄 Datasheet

Description: USB Host Charger Identification Analog Switches

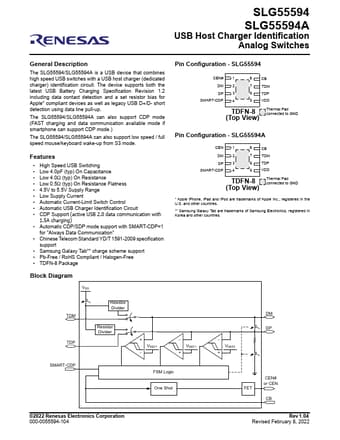

Datasheet Preview: SLG55594A 📥 Download PDF (404.08KB)

SLG55594A Features and benefits


* High Speed USB Switching
* Low 4.0pF (typ) On Capacitance
* Low 4.0Ω (typ) On Resistance
* Low 0.5Ω (typ) On Resistance Flatness
* 4.5V to 5.5V Supp.

SLG55594A Description

The SLG55594/SLG55594A is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit. The device supports both the latest USB Battery Charging Specification Revision 1.2 including data contac.

Image gallery

Page 2 of SLG55594A Page 3 of SLG55594A
