TPS-1

Single Chip Interface Solution

TPS-1 Features

* Applications  Industrial Drives  Compact and modular Remote I/Os

* Product features  Integrated PROFINET IO CPU  Compliant with Conformance Class C  2 Ethernet ports, 100 Mbps, full duplex  2 integrated PHYs with an auto negotiation, auto crossover  Integrated IRT switch, 8

TPS-1 General Description

The TPS-1 is a single-chip PROFINET interface component integrating a CPU, a 2-port switch supporting latest PROFINET specifications, the Ethernet PHYs and peripheral modules to interface to the application layer of any application building a PROFINET IO device. The internal structure is designed to.

TPS-1 Datasheet (922.14 KB)

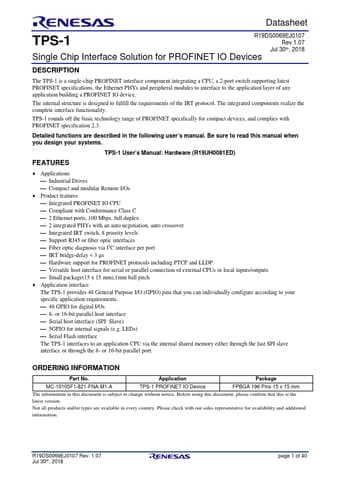

Preview of TPS-1 PDF

Datasheet Details

Part number:

TPS-1

Manufacturer:

Renesas ↗

File Size:

922.14 KB

Description:

Single chip interface solution.
