ZSSC3136

Sensor Signal Conditioner

ZSSC3136 Features

* for switch applications, the ZSSC3136 offers the capability to set up safety-relevant SIL2 rated switches due to its extended safety functionalities. Features

* Analog gain of 105, maximum overall gain of 420

* Sample rate: 200 Hz maximum

* ADC resolution: 13/14 bit

ZSSC3136 General Description

The ZSSC3136 is a member of the ZSSC313x family of CMOS integrated circuits for automotive/ industrial sensor applications. All family members are well suited for highly accurate amplification and sensor-specific correction of resistive bridge sensor signals. An internal 16-bit RISC microcontroller .

ZSSC3136 Datasheet (568.18 KB)

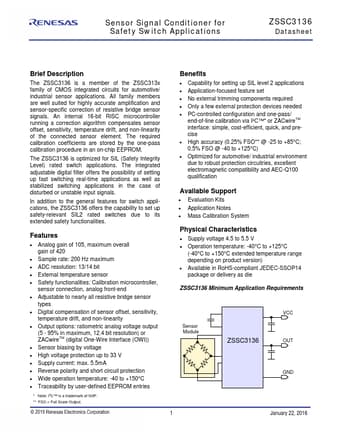

Preview of ZSSC3136 PDF

Datasheet Details

Part number:

ZSSC3136

Manufacturer:

Renesas ↗

File Size:

568.18 KB

Description:

Sensor signal conditioner.
