RT9183

Ultra Low Dropout 1.5A Linear Regulator

RichTek

RT9183 Features

* include over-current and overtemperature protection. The adjustable version has enable pin to reduce power consumption in shutdown mode. The devices are available in fixed output voltages of 1.2V to 3.3V with 0.1V per step and as an adjustable device with a 0.8V reference voltage. The RT9183 regulat

RT9183 General Description

The RT9183 series are high performance linear voltage regulators that provide ultra low-dropout voltage, high output current with low ground current. It operates from an input of 2.3V to 5.5V and provides output current up to 1.5A thus is suitable to drive digital circuits requiring low voltage at h.

RT9183 Datasheet (257.55 KB)

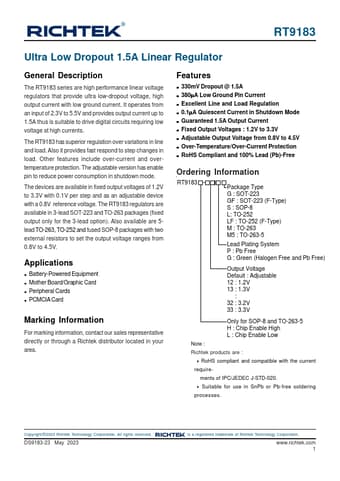

RT9183 Datasheet Preview — Preview of RT9183 PDF

Datasheet Details

Part number:

RT9183

Manufacturer:

RichTek

File Size:

257.55 KB

Description:

Ultra low dropout 1.5a linear regulator.
