RTC7637 - 5 GHz Front End Module

RTC7637 Description

Data Sheet RTC7637 5 GHz Front End Module for 802.11a/n/ac AUG 2017 - Ver.0.4 Compliant Pb Lead-Free HF Halogen FREE .
The RTC7637 is a RF front-end module (FEM) with transmit/receive chains for 802.

RTC7637 Features

* ÇÇ Frequency Range: 5.15
* 5.85 GHz ÇÇ In

RTC7637 Applications

* The device consists of a power amplifier (PA) with a power detector, a low-pass filter (LPF) for harmonic rejection, a T/R switch and a RX low-noise amplifier (LNA). The antenna ports are switched between transmit and receive paths. In transmit path, the FEM has a typical gain of 27 dB and delivers

📥 Download Datasheet

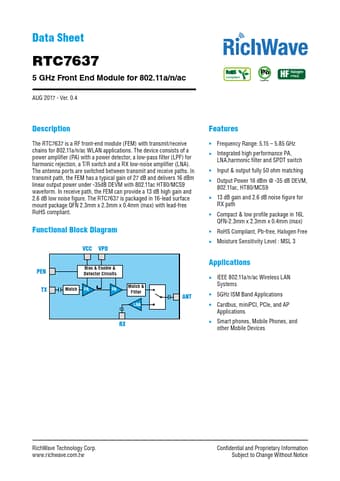

Preview of RTC7637 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RTC7637
Manufacturer
RichWave
File Size
144.89 KB
Datasheet
RTC7637-RichWave.pdf
Description
5 GHz Front End Module
