RT9125

Inductor-Less Digital Audio

Richiek

RT9125 Features

* three band DRC and flexible multi-band biquads for anti-clipping, power limiting, and speaker equalization. The recommended junction temperature range is

* 40C to 150C, and the ambient temperature range is

* 40C to 85C. 2 Ordering Information RT9125 - Packing A: Standard Package

RT9125 General Description

The RT9125 is a high efficiency, I2S-input, stereo channel audio power amplifier delivering 2x30W into 8 BTL speaker loads. It can deliver over 94% power efficiency and eliminate the need for heat-sink. Built-in protection circuits can provide overtemperature, overcurrent, overvoltage, DC and under.

RT9125 Datasheet (4.74 MB)

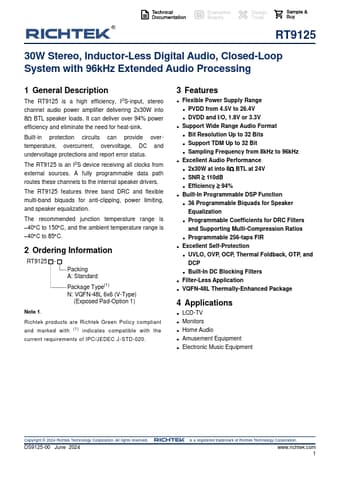

RT9125 Datasheet Preview — Preview of RT9125 PDF

Datasheet Details

Part number:

RT9125

Manufacturer:

Richiek

File Size:

4.74 MB

Description:

Inductor-less digital audio.
