R1114N - Low Noise 150 mA LDO Regulator

Product Overview

Richo

Datasheet Details

Part number	R1114N
Manufacturer	Richo
File Size	725.37 KB
Description	Low Noise 150 mA LDO Regulator
Datasheet	R1114N Datasheet

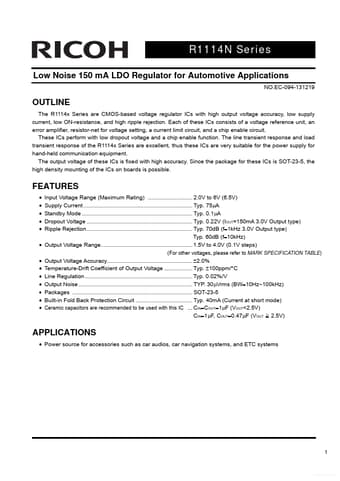

Additional preview pages of the R1114N datasheet.

Product details

Description

z SOT-23-5 5 4 (mark side) 1 2 3 R1114N Pin No.1 2 3 4 5 Symbol VDD GND Input Pin Ground Pin Chip Enable Pin No Connection Output pin Description CE or CE NC VOUT 3 Free Datasheet http://www.datasheetlist.com/ R1114N NO.EC-094-131219 ABSOLUTE MAXIMUM RATINGS Symbol VIN VCE VOUT IOUT PD Tj Tstg Input Voltage Input Voltage ( CE or CE Pin) Output Voltage Output Current Power Dissipation (SOT-23-5) ∗ Junction Temperature Storage Temperature Range Item Rating 6.5 6.5

Features

Input Voltage Range (Maximum Rating) 2.0V to 6V (6.5V) Supply Current Typ. 75μA Standby Mode Typ. 0.1μA Dropout Voltage Typ. 0.22V (IOUT=150mA 3.0V Output type) Ripple Rejection Typ. 70dB (f=1kHz 3.0V Output type) Typ. 60dB (f=10kHz) Output Voltage Range 1.5V to 4.0V (0.1V steps) (For other voltages, please refer to MARK.
