Description

RT9718 Over Voltage Protection IC General .
The RT9718 is an integrated circuit optimized to protect low voltage system from abnormal high input voltage (up to 30V).

📥 Download Datasheet

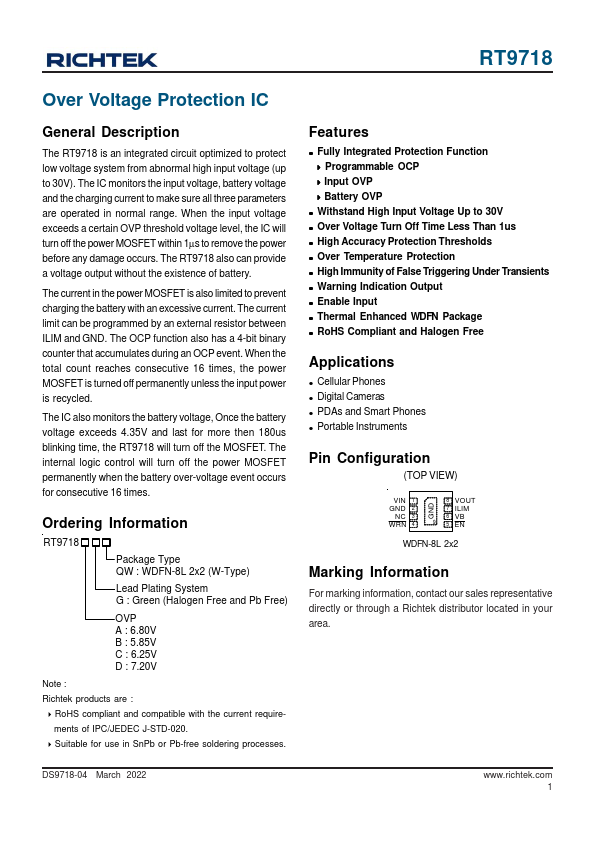

RT9718 Datasheet Preview — Preview of RT9718 PDF

Datasheet Specifications

Part number: RT9718
Manufacturer: Richtek Technology Corporation
File Size: 195.93 KB
Datasheet: RT9718-RichtekTechnologyCorporation.pdf
Description: Over Voltage Protection

Features

* Fully Integrated Protection Function  Programmable OCP  Input OVP  Battery OVP
* Withstand High Input Voltage Up to 30V
* Over Voltage Turn Off Time Less Than 1us
* High Accuracy Protection Thresholds
* Over Temperature Protection
* High Immunity of False Triggering Unde

Applications

* Cellular Phones
* Digital Cameras
* PDAs and Smart Phones
* Portable Instruments Pin Configuration (TOP VIEW) VIN 1 GND 2 NC 3 WRN 4 GND 8 VOUT 7 ILIM 6 VB 9 5 EN WDFN-8L 2x2 Marking Information For marking information, contact our sales representative directly or through a R
