RT9010

300mA LDO Regulator

Richtek Technology

RT9010 Features

* include current limiting, over temperature, output short circuit protection. RT9010 is short circuit thermal folded back protected. RT9010 lowers its OTP trip point from 165°C to 110°C when output short circuit occurs (VOUT < 0.4V) providing maximum safety to end users. RT9010 can operate stably wit

RT9010 General Description

RT9010 is a low noise, and low dropout with the sourcing ability up to 300mA and power-on reset function. The range of output voltage is from 1.2V to 3.6V by operating from 2.5V to 5.5V input. RT9010 offers 2% accuracy, extremely low dropout voltage (240mV @ 300mA), and extremely low ground current..

RT9010 Datasheet (282.97 KB)

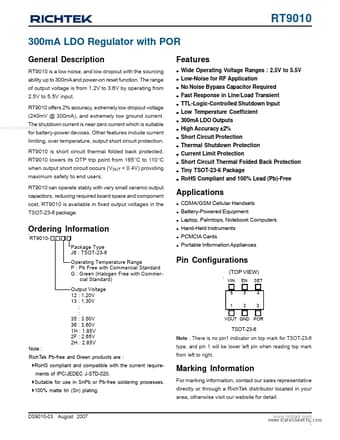

RT9010 Datasheet Preview — Preview of RT9010 PDF

Datasheet Details

Part number:

RT9010

Manufacturer:

Richtek Technology

File Size:

282.97 KB

Description:

300ma ldo regulator.
