RT9362A

White LED Driver

RT9362A Features

* z z z z z z z z RT9362/A White LED Driver (120mA Charge Pump with Current Source) Very High Efficiency Over 90% of Battery Life Support up to 4 WLEDs Support up to 120mA Output Current Soft Start Function Short Circuit Protection Function Three Charge Pump Mode: x1, x1.5, x2 250k/1MHz Fixed Freque

RT9362A General Description

The RT9362/A is a high efficiency charge pump white LED driver. It supports up to 4 white LEDs with regulated constant current for uniform intensity. The RT9362/A maintains the highest efficiency by utilizing a x1/x1.5/x2 fractional charge pump and low dropout current regulators. User can easily con.

RT9362A Datasheet (414.62 KB)

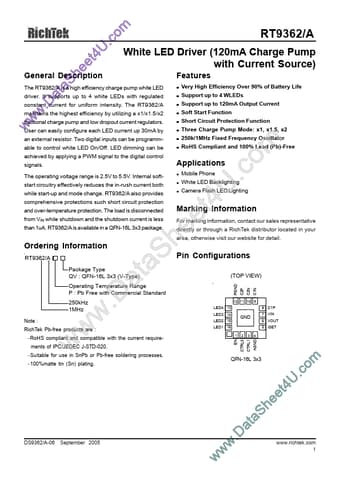

Preview of RT9362A PDF

Datasheet Details

Part number:

RT9362A

Manufacturer:

Richtek Technology

File Size:

414.62 KB

Description:

White led driver.
