RT6204 Datasheet, Converter, Richtek

RT6204 Features

  • Converter current-mode control to simplify external compensation and to optimize transient response with a wide range of inductors and output capacitors. High efficiency can be achieved through i

PDF File Details

Part number:

RT6204

Manufacturer:

Richtek

File Size:

1.16MB

Download:

📄 Datasheet

Description:

350khz synchronous step-down converter. The RT6204 is a 60V, 500mA, 350kHz, high-efficiency, synchronous step-down DC-DC converter with an input-voltage range of 5.2V to 60V

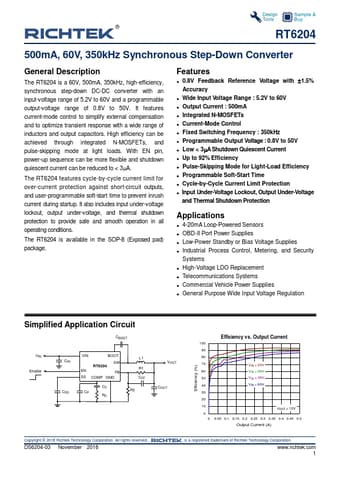

Datasheet Preview: RT6204 📥 Download PDF (1.16MB)
Page 2 of RT6204 Page 3 of RT6204

RT6204 Application

  • Applications
  • 4-20mA Loop-Powered Sensors
  • OBD-II Port Power Supplies
  • Low-Power Standby or Bias Voltage Supplies
